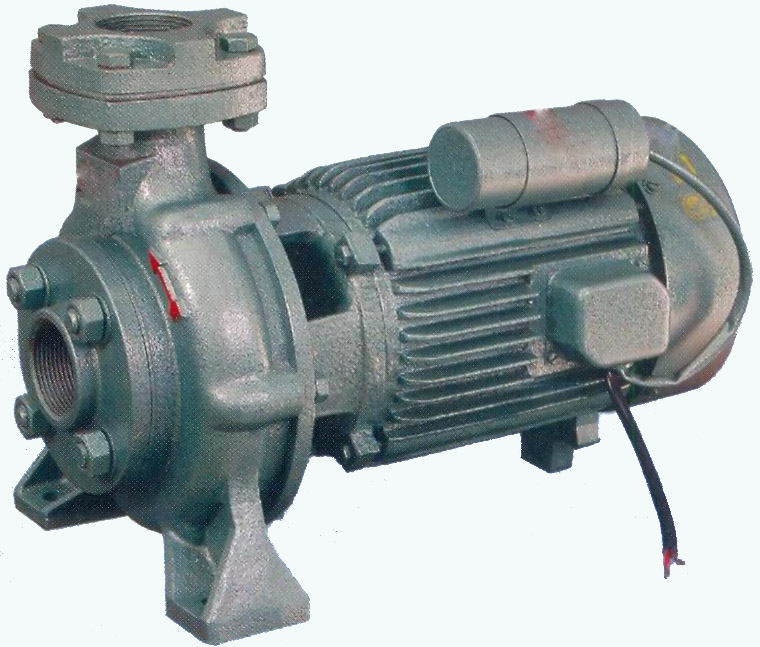

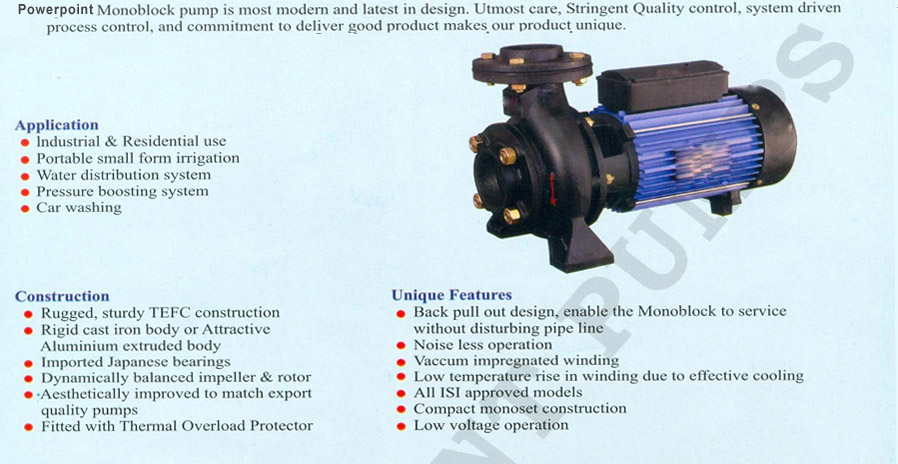

Centrifugal Monoblock Pumps


PERFORMANCE CHART FOR MONOBLOCK PUMP SET

SINGLE PHASE (215V)AND THREE PHASE 415V)

MODEL H.P SIZE TOTAL HEAD IN METER (50Hz, 2800 R.P.M E CLASS INSS,AC,SUPPLY
IN 6 8 9 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
MM DISCHARGE IN L.P.S.(LITRE PER SER SECOND)
P.H.M-01 0.5 25×25 2.3 2 1.9 1.7 1.3 0.9 - - - - - - - - - - - - -
P.H.M-02 0.5 40×40 3.8 2.9 2 - - - - - - - - - - - - - - - -
P.H.M-11 1 25×25 - - - - - 3.6 3.32 3.2 2.71 2.05 1.1 - - - - - - - -
P.H.M-12 1 40×40 - 5.3 5.21 5.1 5 4.1 3.5 1.9 - - - - - - - - - - -
P.H.M-13 1 50×40 6.6 5.8 5.36 4.6 4.1 3 1.9 - - - - - - - - - - - -
P.H.M-14 1 50×50 7.5 7 6.2 5.1 4.1 - - - - - - - - - - - - - -
P.H.M-21 1.5 40×40 - 4.4 4.21 4.1 3.9 3.7 3.5 3.21 3.02 2.25 1.35 - - - - - - - -
P.H.M-22 1.5 50×40 - 6.52 6.32 6.1 5.2 4.8 4.1 3.5 2.25 - - - - - - - - - -
P.H.M-23 1.5 50×50 - 7.85 7.62 7.21 5.95 3.61 - - - -   - - - - - - - -
P.H.M-24 1.5 55×50 - 8.5 8 7.2 6.1 - - - - - - - - - - - - - -
P.H.M-32 2 50×40 - 7.8 6.91 6.52 6.21 5.63 5.12 4.61 3.31 1.81 1.32 - - - - - - - -
P.H.M-33 2 50×50 - 8.21 7.5 7.1 6.6 5.8 5.1 4.5 3.3 2.81 2.11 - - - - - - - -
P.H.M-34 2 65×50 10.1 9.8 9.32 8.9 8.12 7.3 6.5 5 - - - - - - - - - - -
P.H.M-35 2 75×65 11.6 10.3 9.61 9.1 8.2 6.6 4.1 - - - - - - - - - - - -
P.H.M-38 2 75×75 13.8 11.6 10.34 9.8 8.4 5.21 - - - - - - - - - - - - -
